MyGIG Microphone



Back

The Mod:

Add a microphone to the MyGIG unit.

What it does:

The microphone permits hands free operation of a blue tooth telephone, and also permits hands free operation of the MyGIG unit.

Photos:

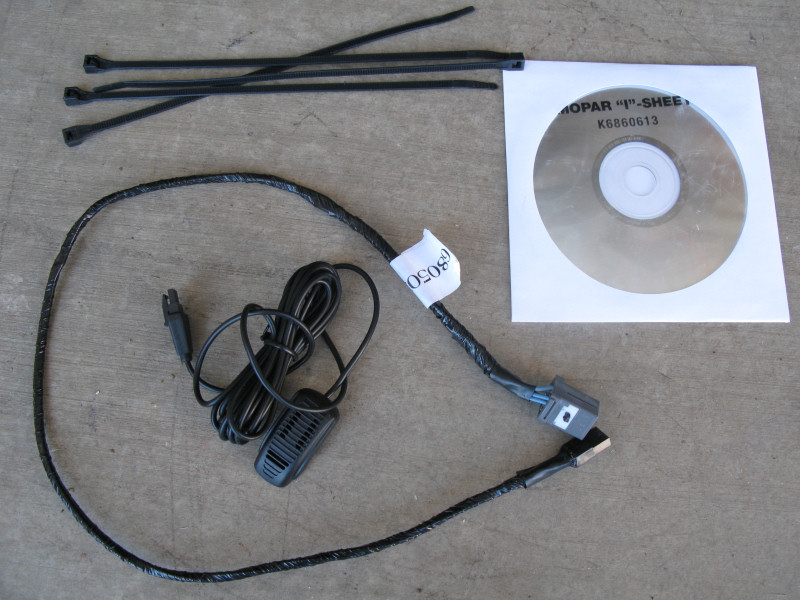

Here's what you get. The CB isn't used (use the most current MyGIG software instead):

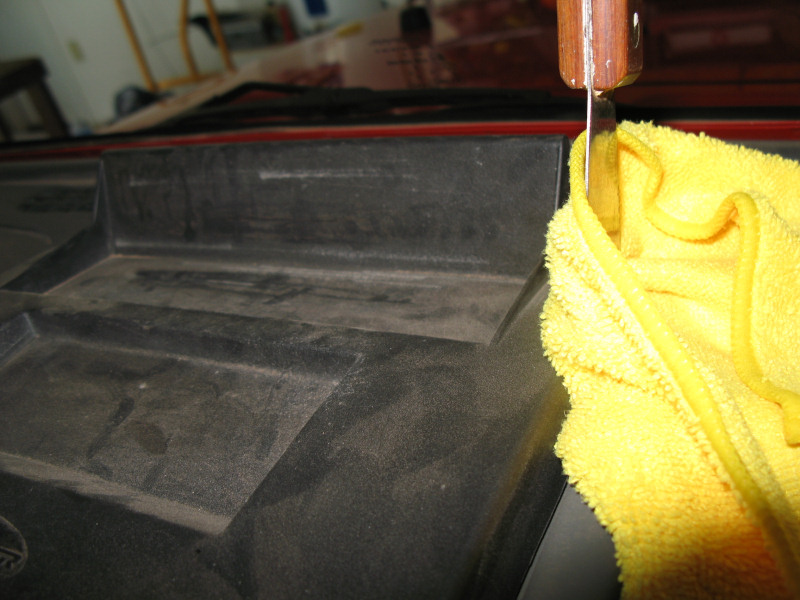

Using a putty knife and cloth pop off the top console cover and set it aside:

Remove the two screws that hold that top of the center console trim:

Remove the two air vents:

To get a little more room to work, use the putty knife and cloth pop out the center console center clips:

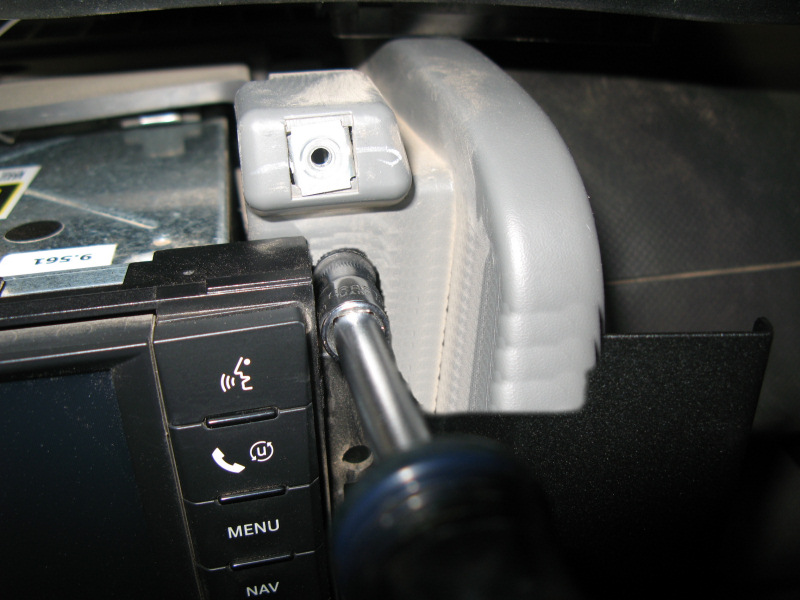

Remove the four screws that hold the radio in place:

Slide back the radio:

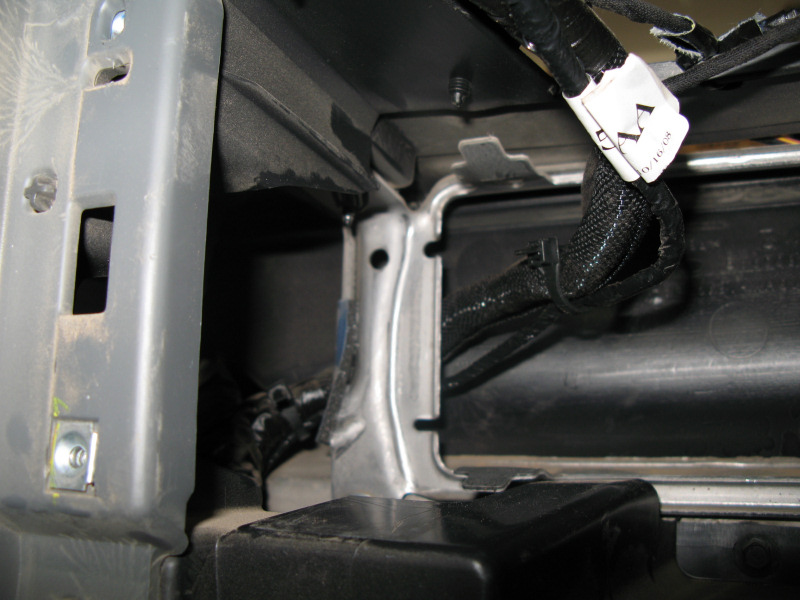

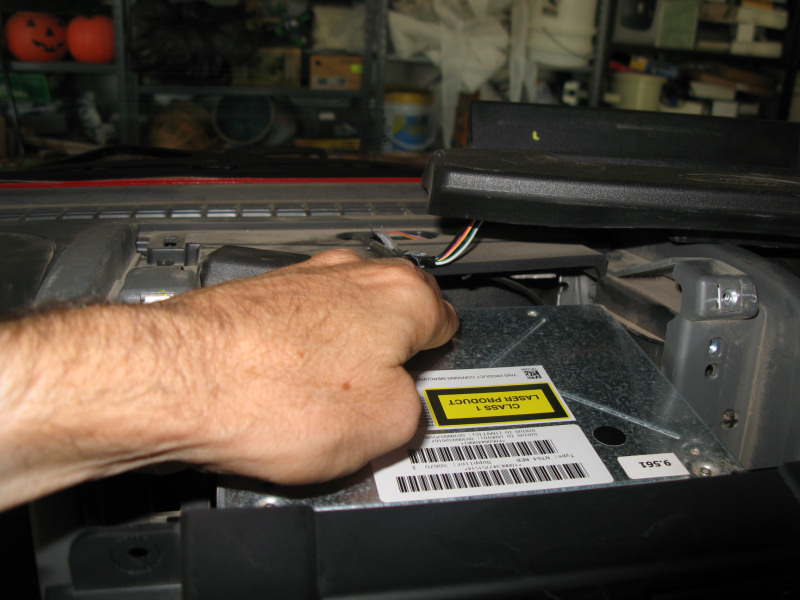

Connect the big connector to the back of the radio, route the wires with the other radio wires and use two tie wraps to hold the wire in place:

Use the putty knife and cloth to open the panel by the lower right side of the steering wheel:

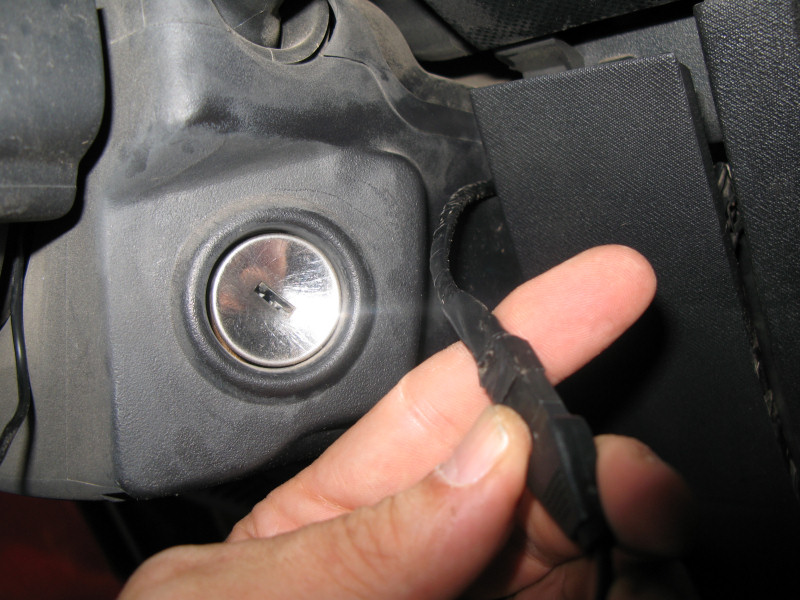

Pull the wire that is connected to the radio through and connect the microphone wire:

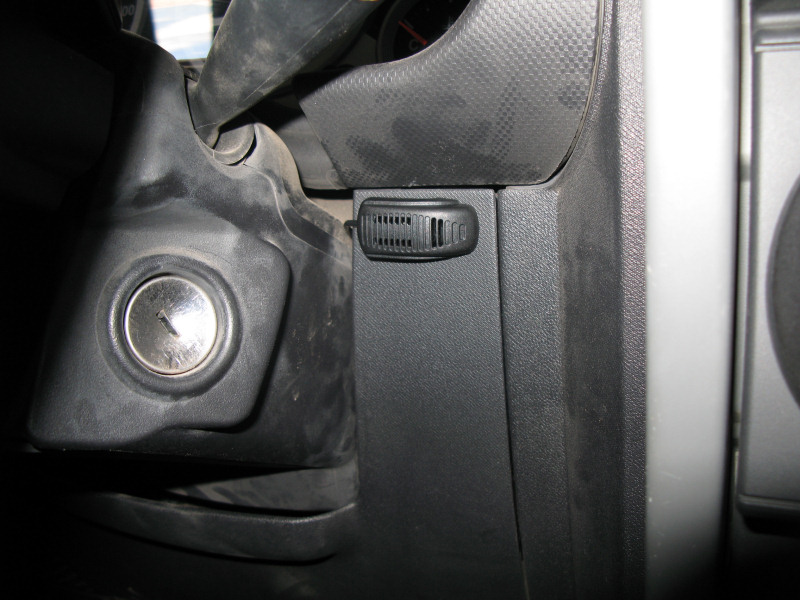

Push the excess wire back behind the panel, and stick the microphone to the panel:

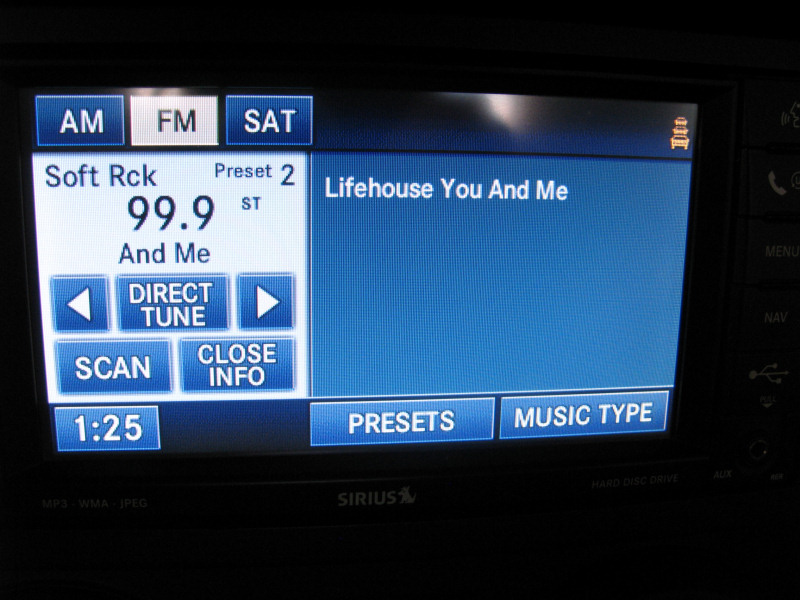

Now to enable the microphone. Turn on your MyGIG:

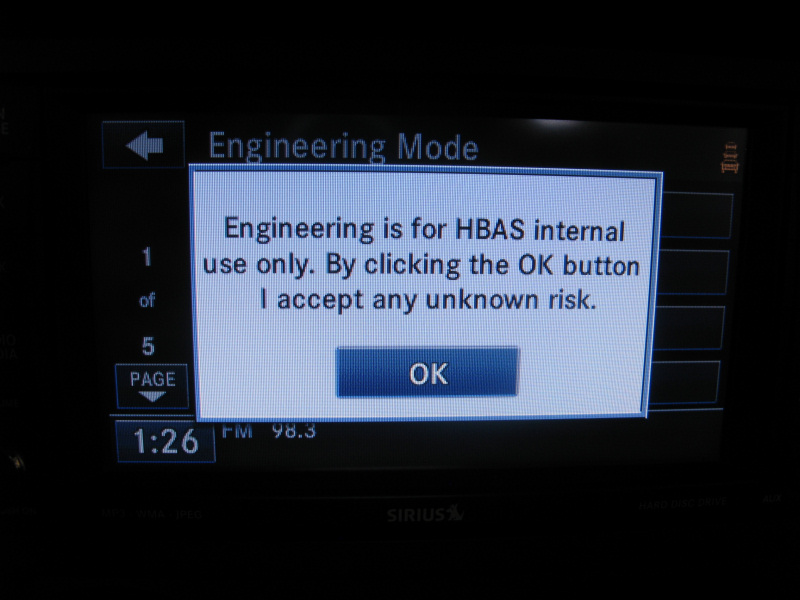

Hit SEEK UP, SEEK DOWN and MENU to enter Engineering Mode, select OK:

Go down the the page that permits you to Enable VR (Voice Recognition)/HFM (Hands Free Mobile), Select Enable:

It's Enabled. Hit the Arrow at Engineering Mode to go back to normal operation.:
