The Mod:

Build a Hi-Lift Jack mount.

What it does:

Where to put a Hi-Lift Jack on you stock Jeep? This will permit you to mount a Hi-Lift Jack inside your Jeep just behind the rear seat.

Photos:

I decided to use the loop at the bottom of the driver’s side rear seat to support the base of the Jack:

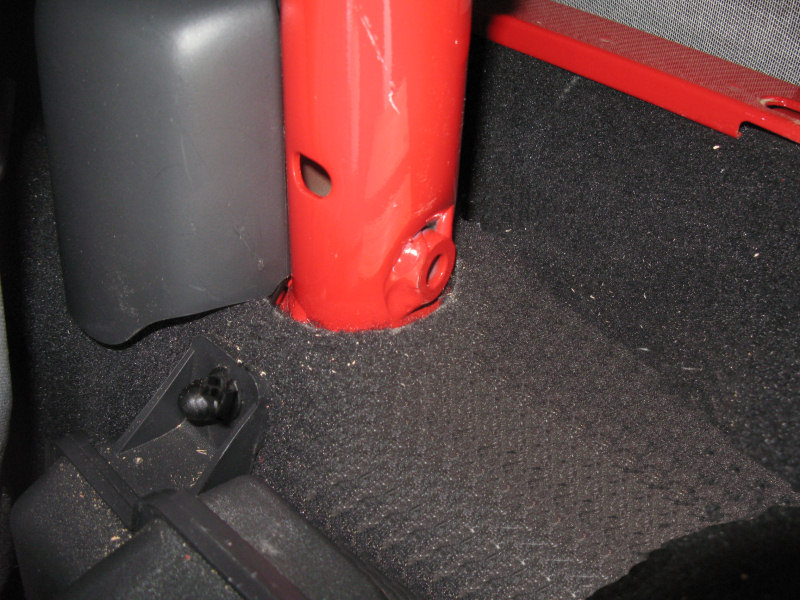

And the passenger side roll bar to support the top of the Jack:

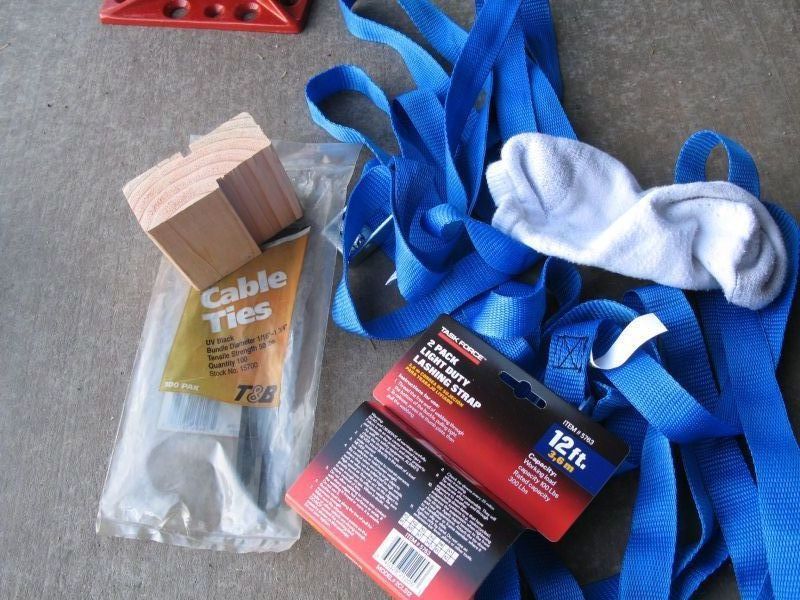

Here are the parts:

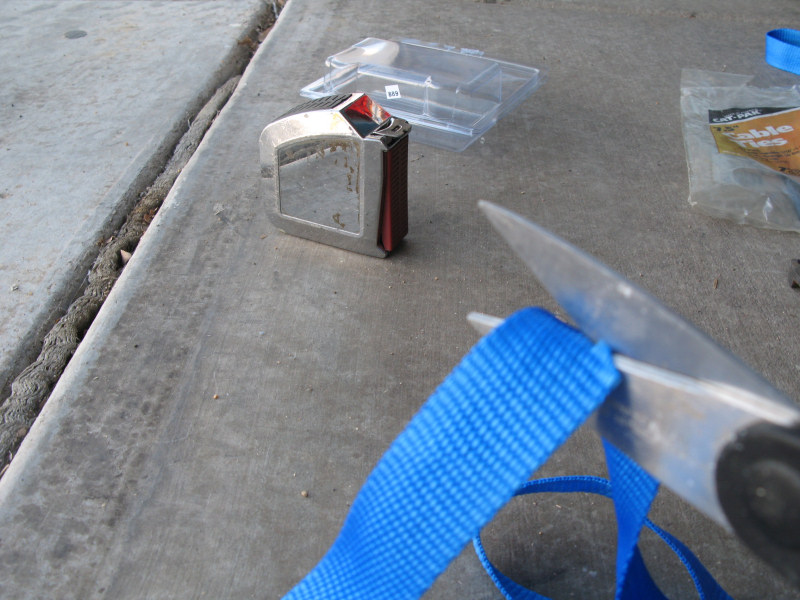

I took the two Lashing Straps that I purchased at Lowe’s and cut them down to 2’:

I then took the cut end:

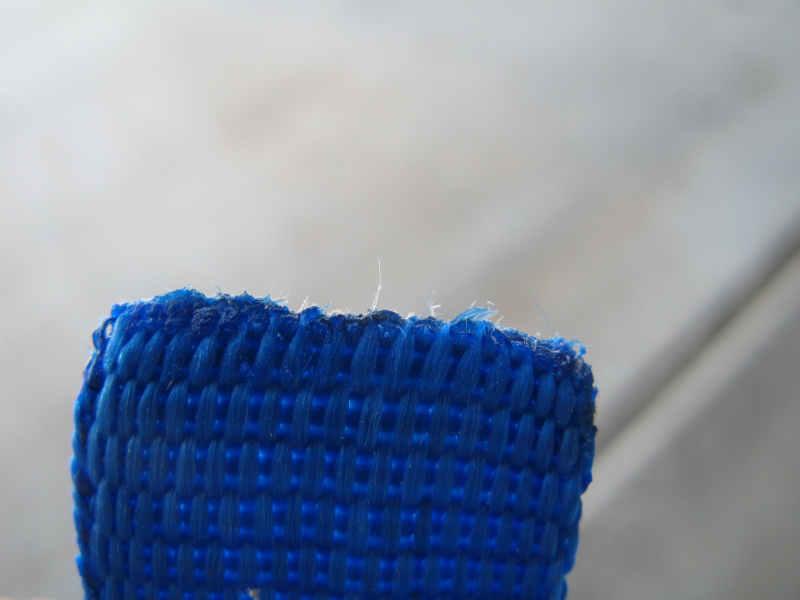

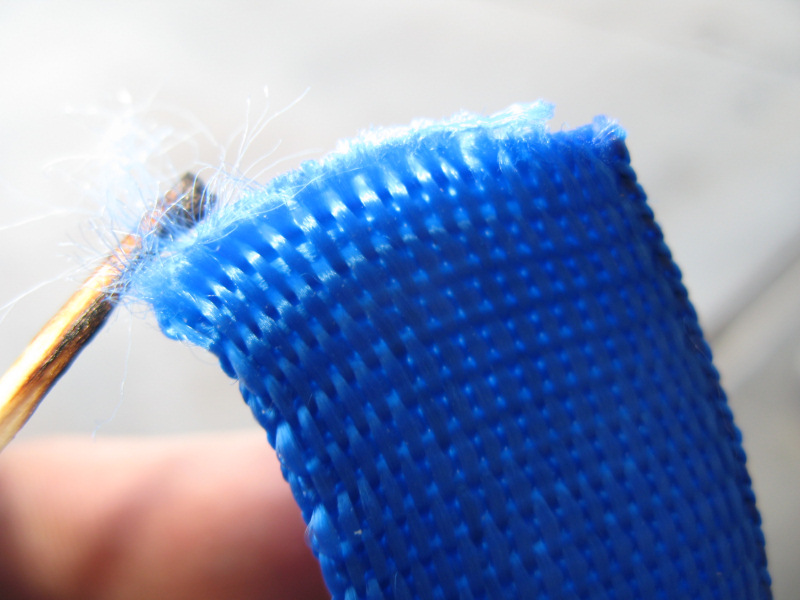

And heated it with a match so it won’t fray:

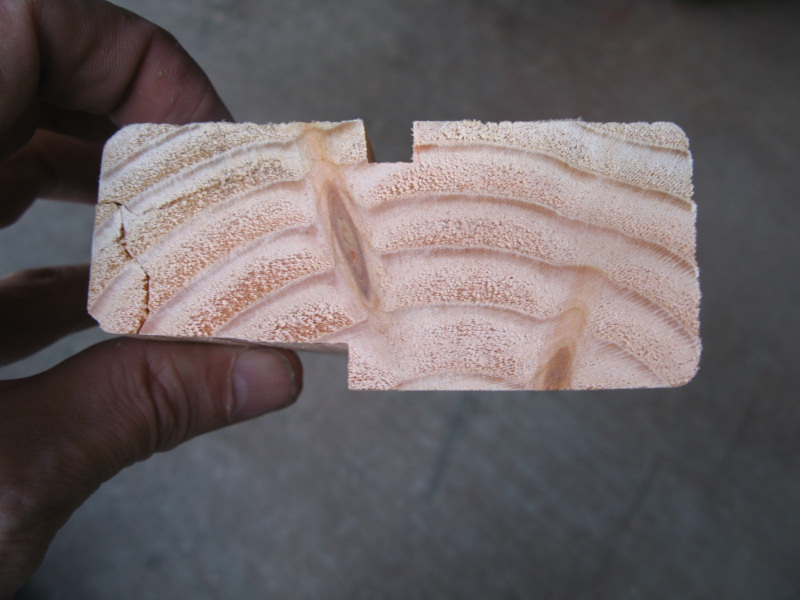

I then cut 3.5” off a 2x4, and made a 1/4" deep by 1.5” wide channel on one of the 3.5” lengths and a small channel down the middle of the other side of the 3.5” length. This is a side view showing the two channels:

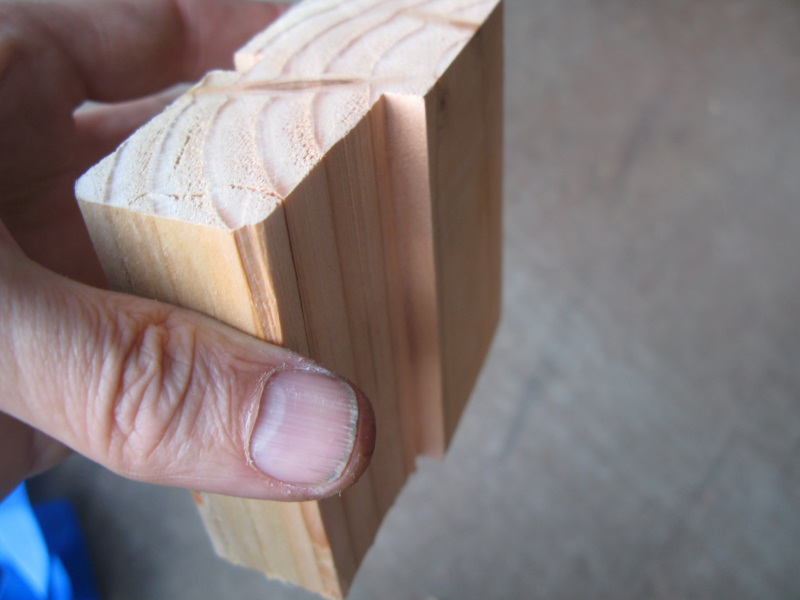

Here’s another view:

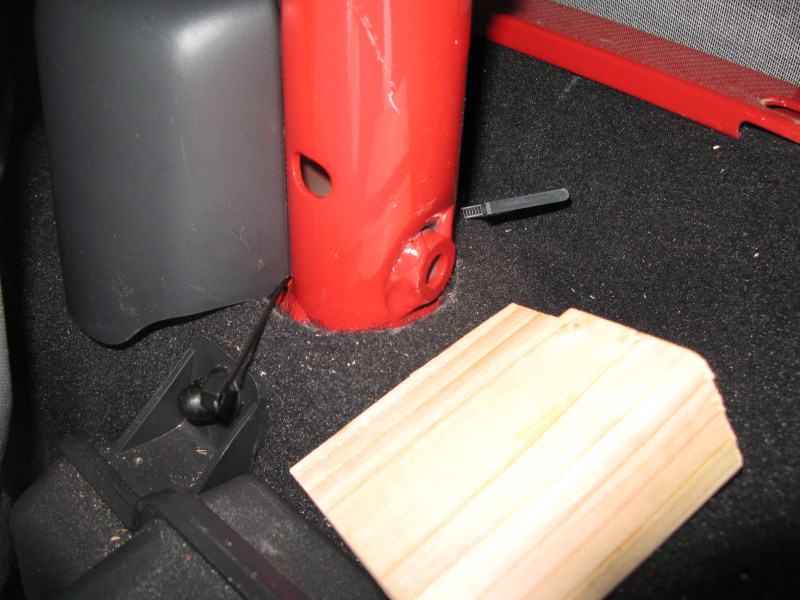

I then ran a cable tie behind the passenger side roll bar:

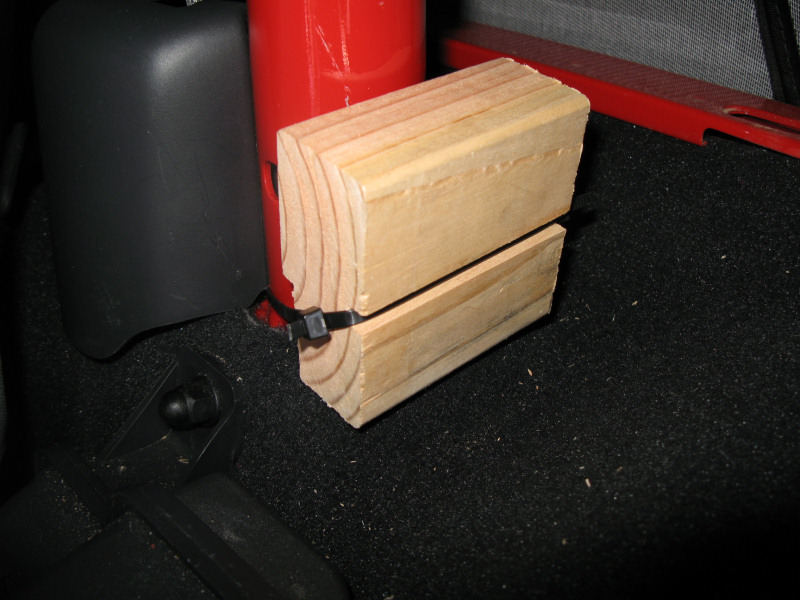

And attached the wood block to the roll bar:

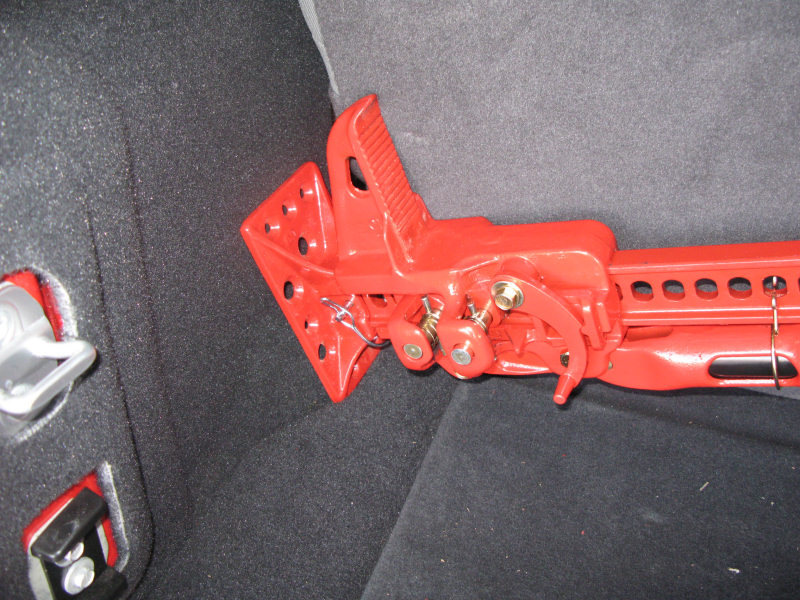

I now placed the Jack in the rear with the foot up against the wall and the Jack up against the seat:

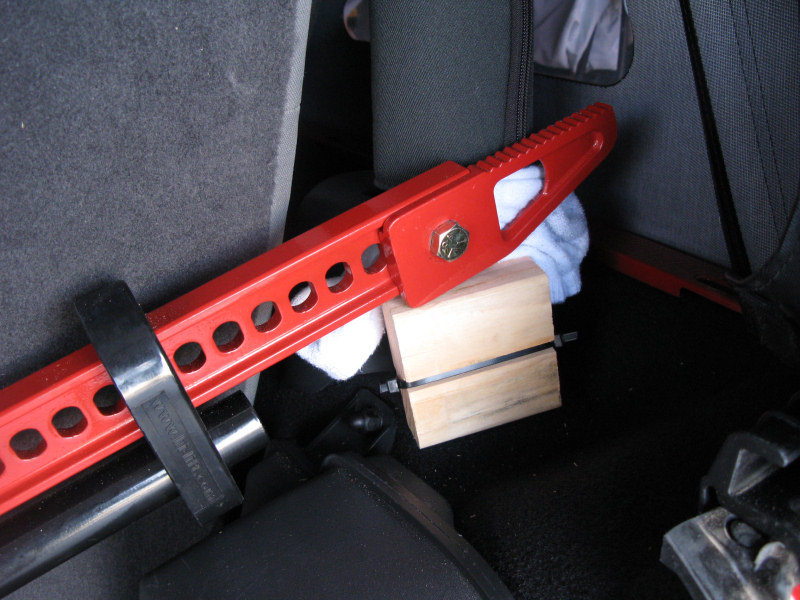

And the top of the Jack on top of the wood block with an old sock (to reduce rattling) between the Jack and the roll bar:

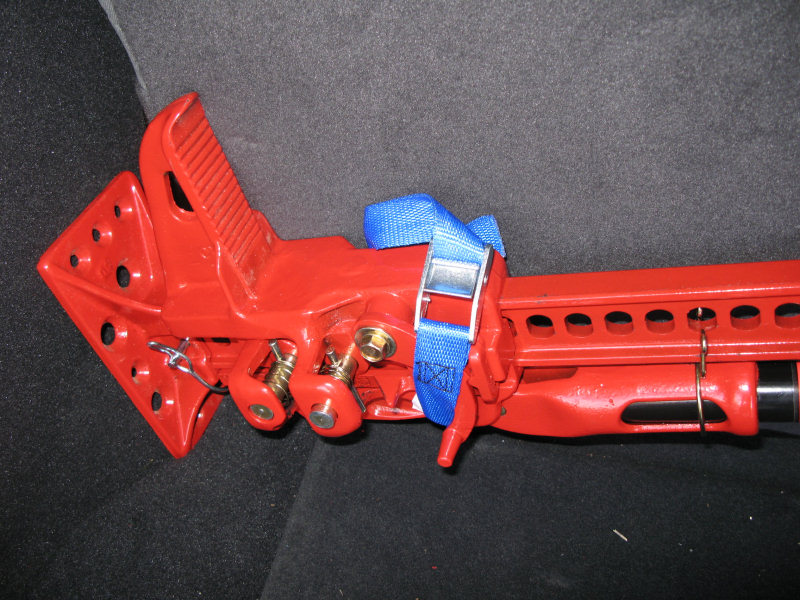

I then ran one strap through the loop on the bottom of the drivers side seat:

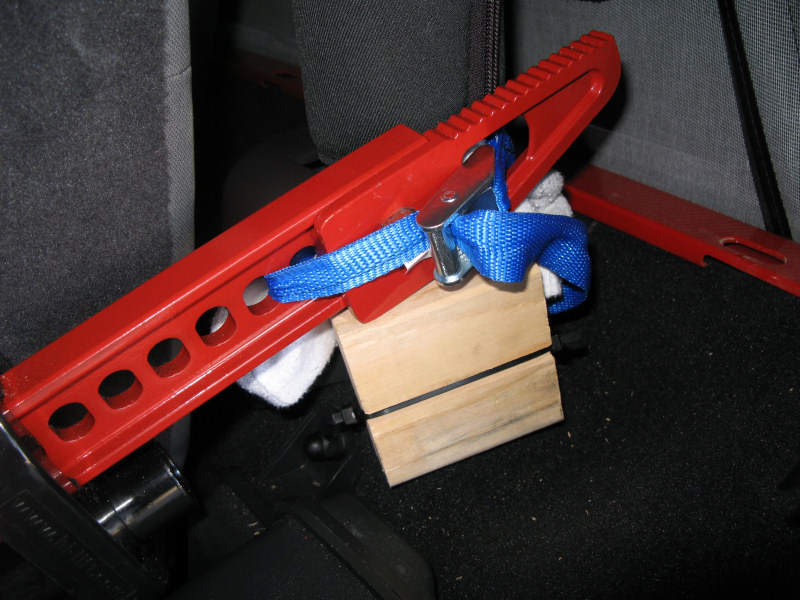

And the other strap through the top of the Jack, around the roll bar (keep it inside of the seat belt), and through one of the holes in the Jack:

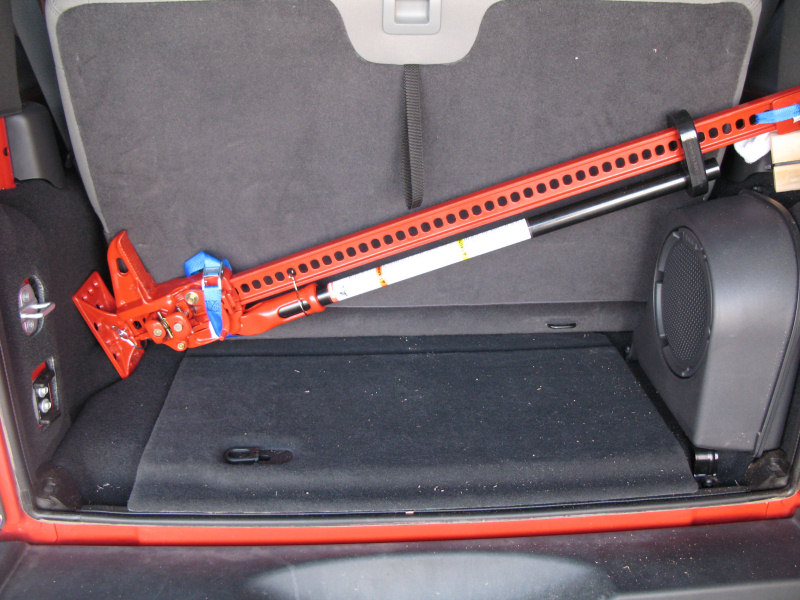

All strapped in place:

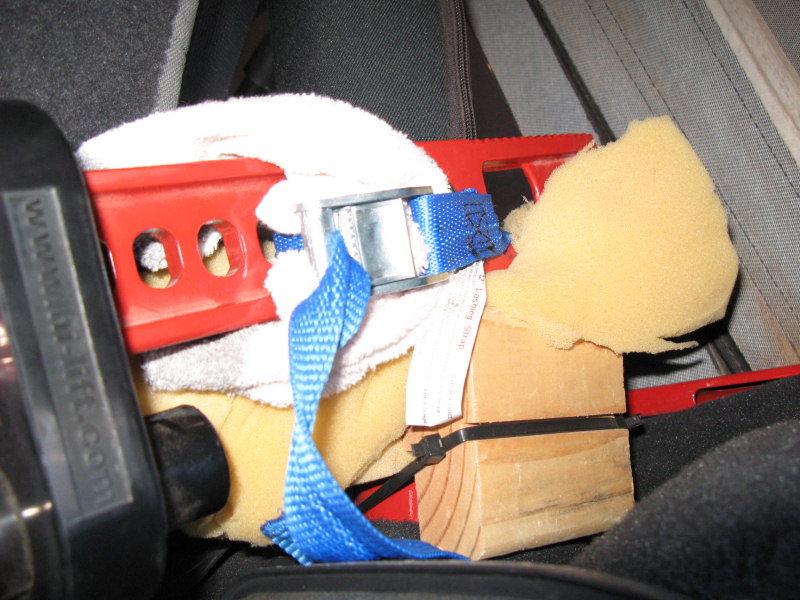

Update: I added foam between the wood block/Jack/Bar which makes it easier to keep it from rattling on the trail:
