4" HIDs



The Mod:

Add two 4" HIDs.

What it does:

When traveling off-road at night the stock lights aren't enough. These HIDs were reviewed in the May '09 Jp Magazine and are a great supplement to the stock lights.

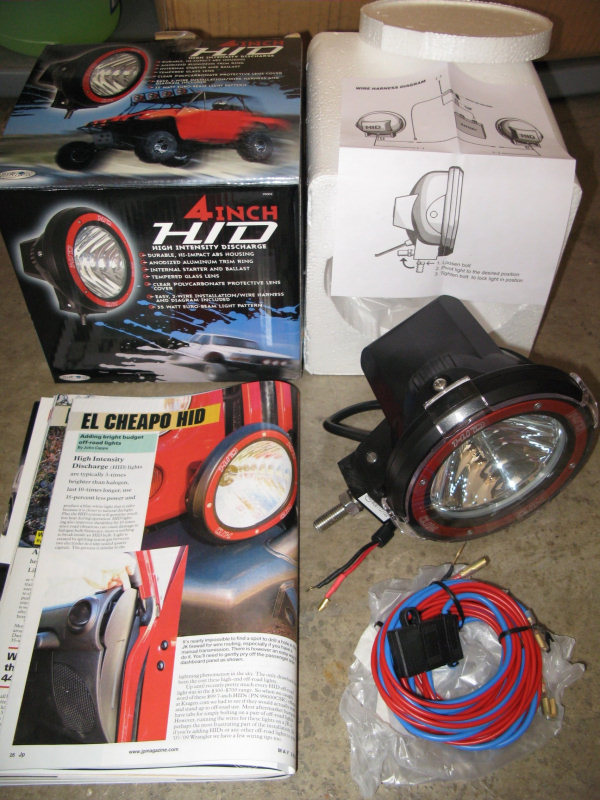

Here's what you get with one kit (you need to purchase two kits to get two lights) and the article in the Jp Magazine:

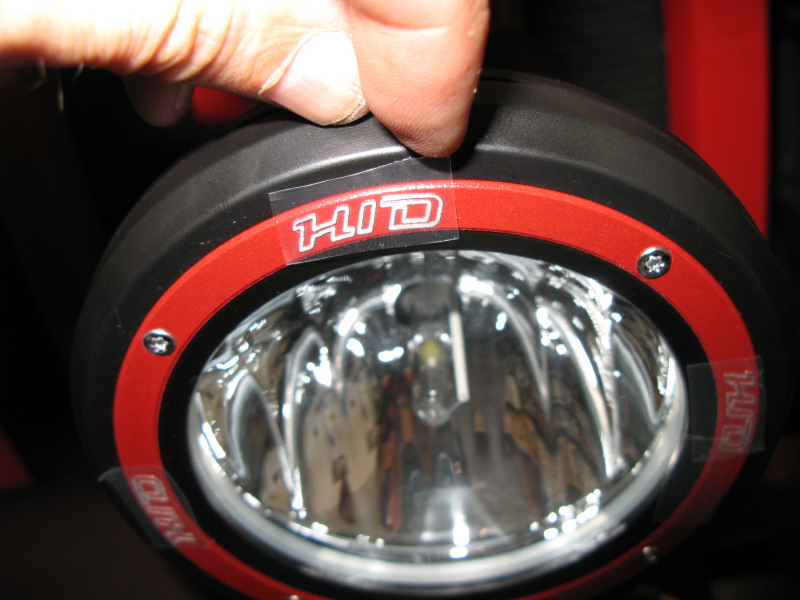

The lights come with a plastic protective cover and four plastic shipping strips that need to be removed:

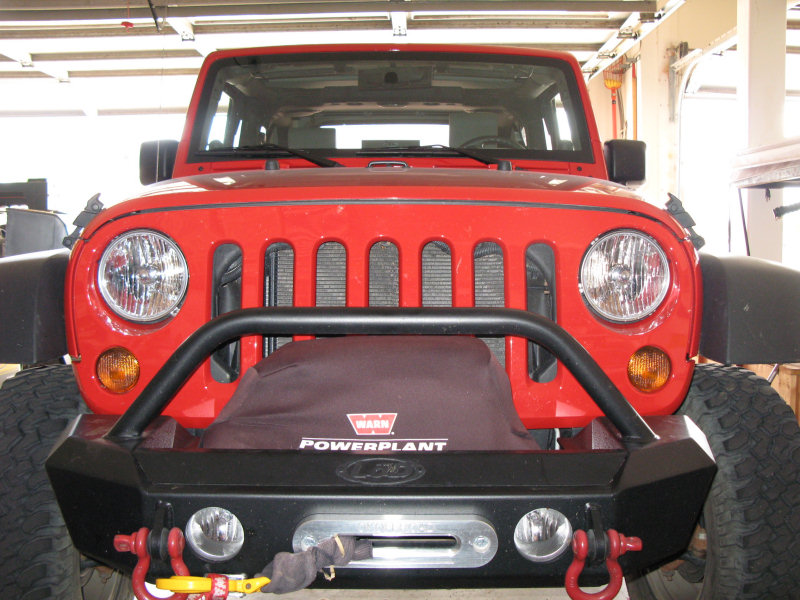

Here's a shot of the front without the HIDs installed:

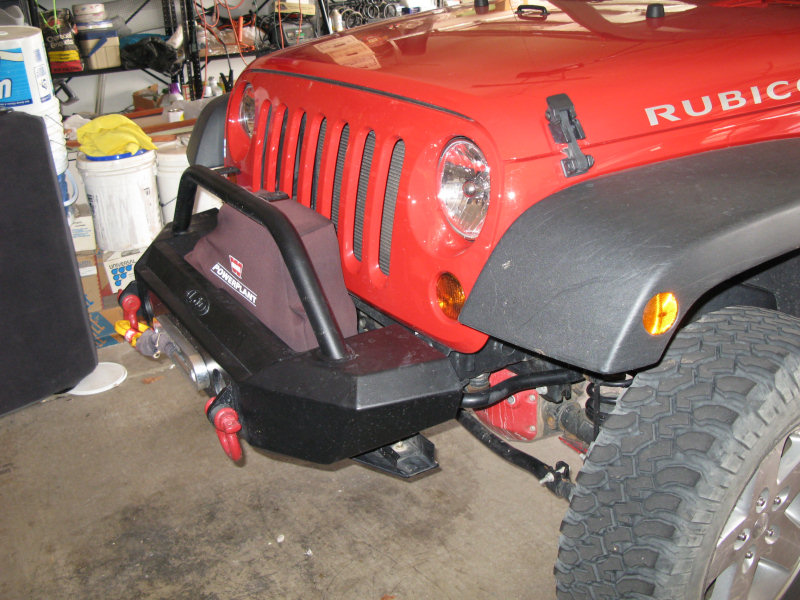

Here's an angled front shot without the HIDs installed:

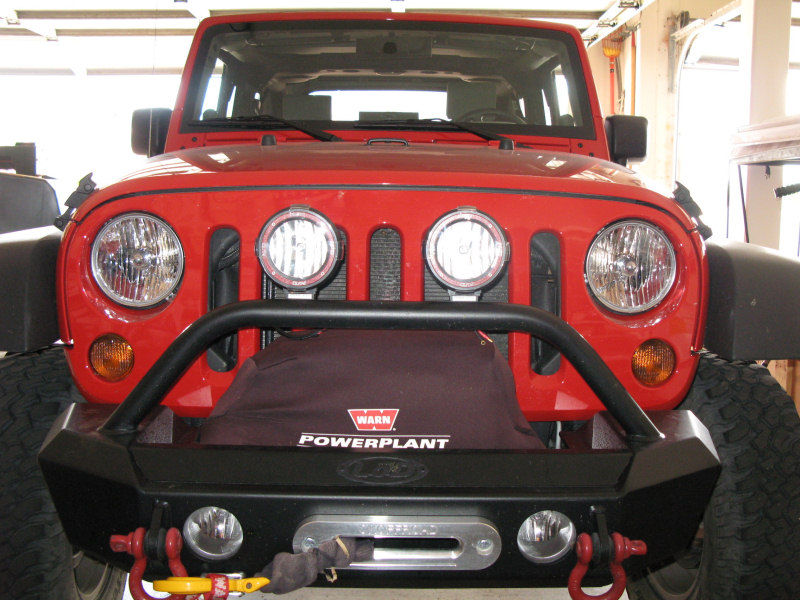

Here's a shot with the HIDs installed on the tabs on the hoop:

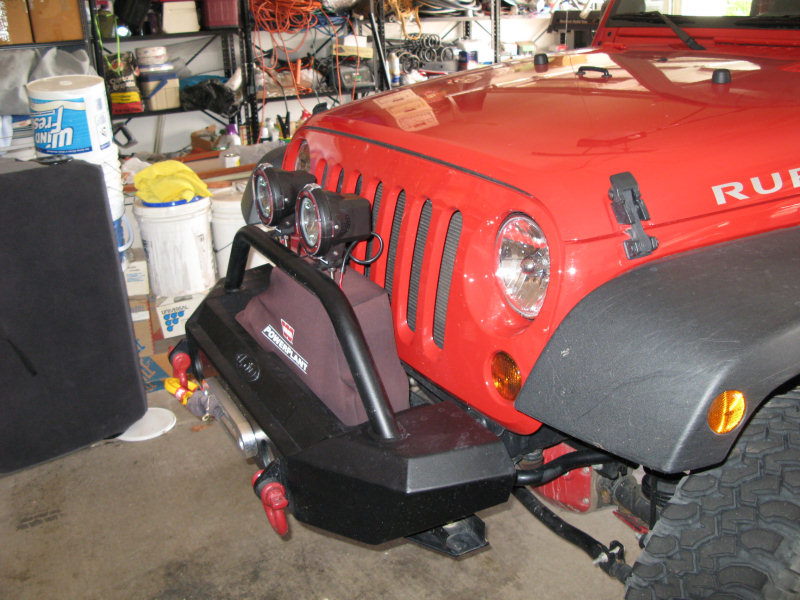

Here's a front angle shot with the HIDs installed on the tabs:

I didn't like airflow placement and didn't like the looks (especially because the HIDs are so deep), so try another location.

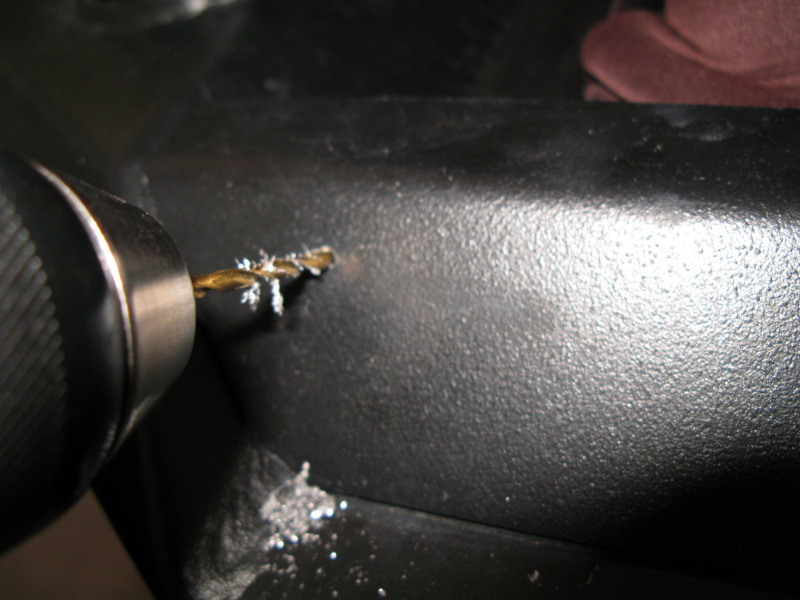

I found a place I liked on the bumper, but I had to drill a hole for each light:

After drilling the holes, paint the bare metal:

The bolts were too long, so I cut off some of the excess (cut with both nuts on the bolt, so you can remove the bolts afterwards and clean the threads as necessary):

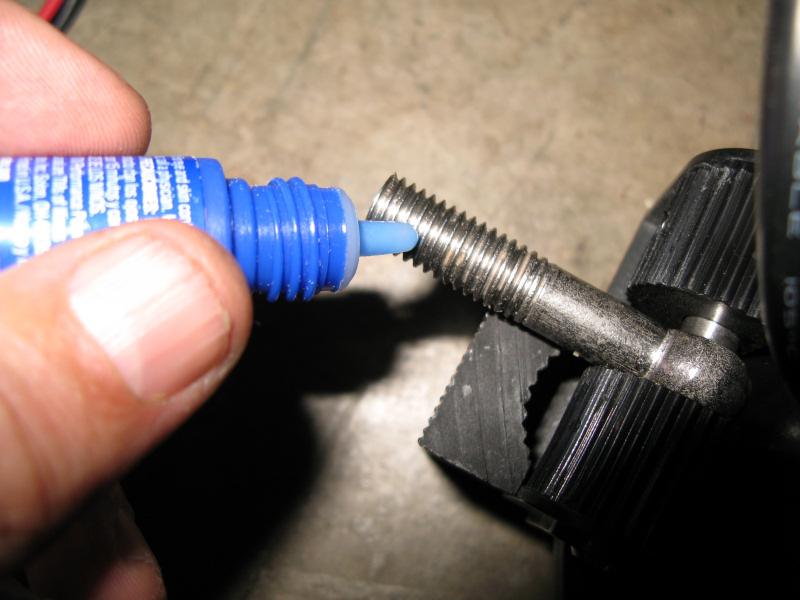

Add Loctite to the bolt:

Bolt in the lights and level (using a small level) and use a wall to aim the lights. I found I had to add some small washers under the front of the bracket to raise the lights up 1/2 notch to get them to aim where I wanted them:

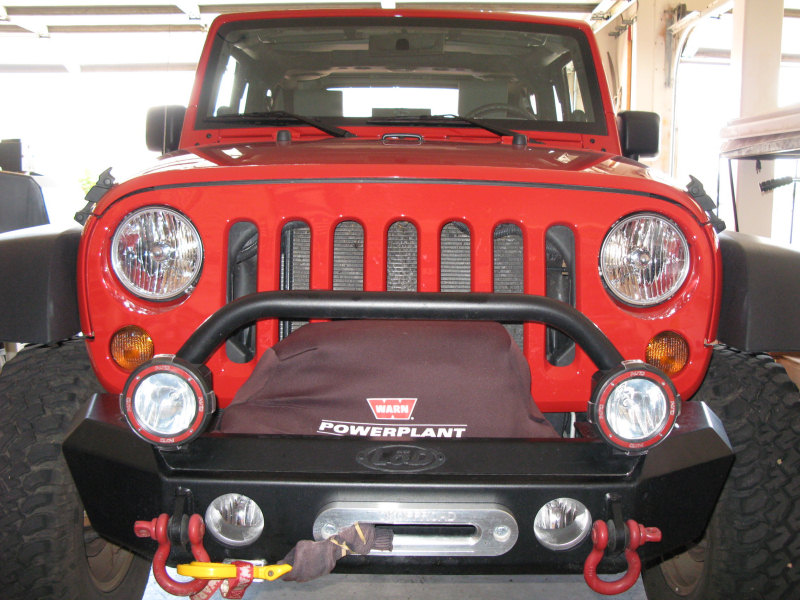

Front angle shot:

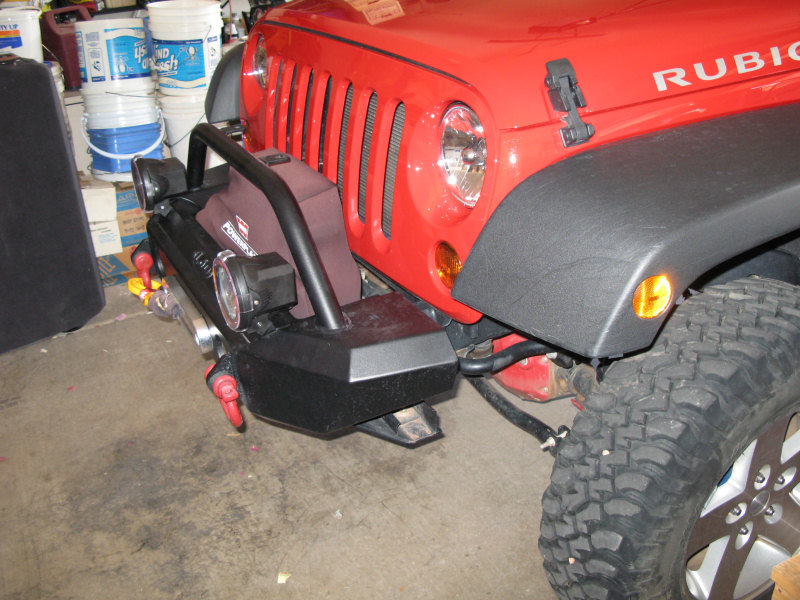

A shot showing the relative location of the front lights on the drivers side:

See Aux Electrical for the wiring hookup.
